Holding Magnets 6

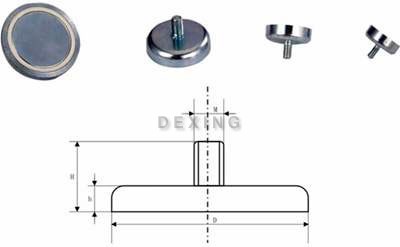

Cup Magnets

Model D φ M H h Pull Force(kg) Weight (g)
DXCM-C10 10 3 12 5 2.2 3.5
DXCM-C12 12 3 13 5 3.2 5
DXCM-C16 16 4 13 5 5.5 7.5
DXCM-C20 20 4 15 7 9 16
DXCM-C25 25 5 17 8 22 30
DXCM-C32 32 6 118 8 34 45
DXCM-C36 36 6 18 8 41 57
DXCM-C42 42 8 20 9 68 84
DXCM-C48 48 8 24 11.5 81 130
DXCM-C60 60 8 30 15 113 254
DXCM-C75 75 10 34 15 164 550
